7 Modern Physics
7A60.10 ELECTRON DIFFRACTION

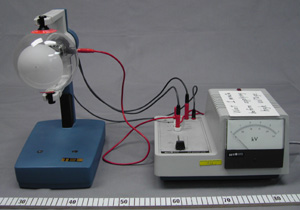

A special vacuum tube displays the diffraction pattern generated by an electron beam penetrating a thin layer of carbon.
Wait 1 minute after turn on for the cathode temperature to stabilize before applying high voltage.
A video camera may be needed in a large classroom.
Typical pattern seen by students in darkened room.
