5K10.30  TWO COILS

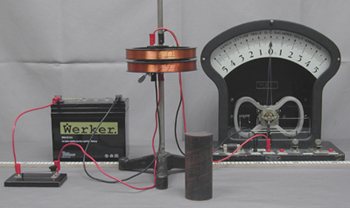

  • Version 1
  • Switching power to one coil induces a momentary current in the adjacent coil.
  • Insert the steel core to increase coupling between the coils.

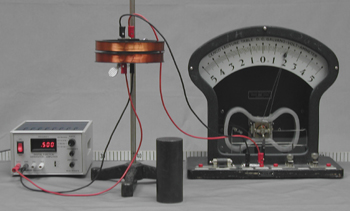

  • Version 2
  • An AC generator induces a sinusoidal current in the adjacent coil.





        (set gen to 0.5 Hz)
