5L10.10 ELI THE ICE MAN

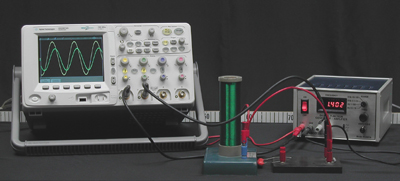

Show that voltage leads current in an inductive circuit.
Oscilloscope display can be projected to the big screen using its VGA output.

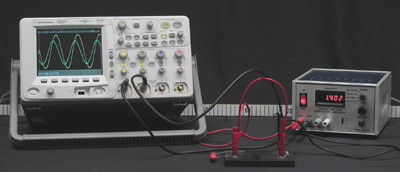

Show that current leads voltage in a capacitive circuit.
