5C10.14  CHARGE A CAPACITOR

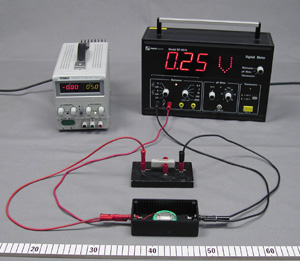

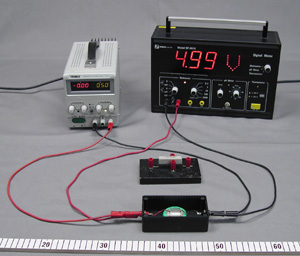

  • A 1 F capacitor can be slowly charged to 5 V.
  • Charge rate can be controlled by current limit function of power supply, do not exceed 1 A.






        (set voltage to 5.0 V, current to 0.25 - 0.50 A)



  • Capacitor can be discharged through a resistor.








        (use 10 ohm, 10 watt resistor)
